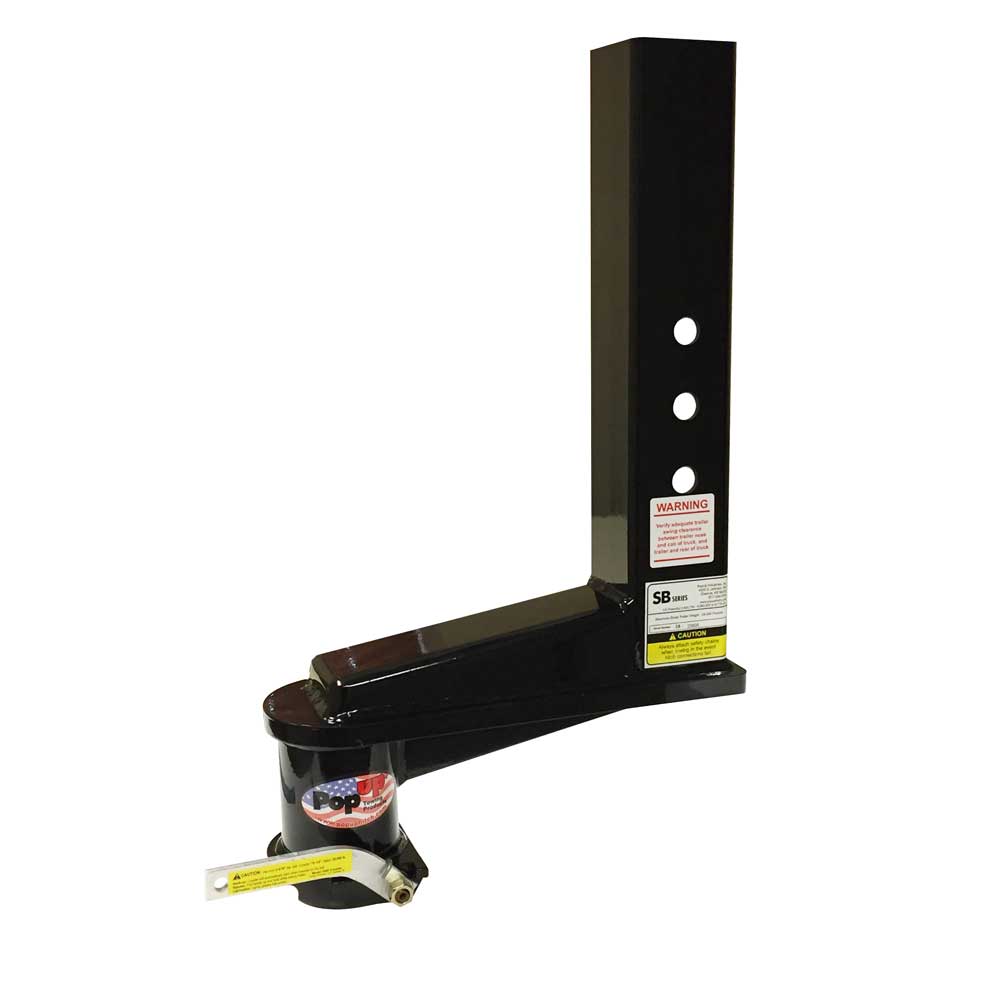

Extended Gooseneck Trailer Coupler

Off-set gooseneck trailer coupler

Click Images to Enlarge



SB Gooseneck Trailer Couplers are known as “Shot Bed Gooseneck Trailer Couplers”, “Extended gooseneck trailer couplers”, and “Off-Set Gooseneck Trailer Couplers”.

SB couplers give you more turning radius, tailgate and cab clearance.

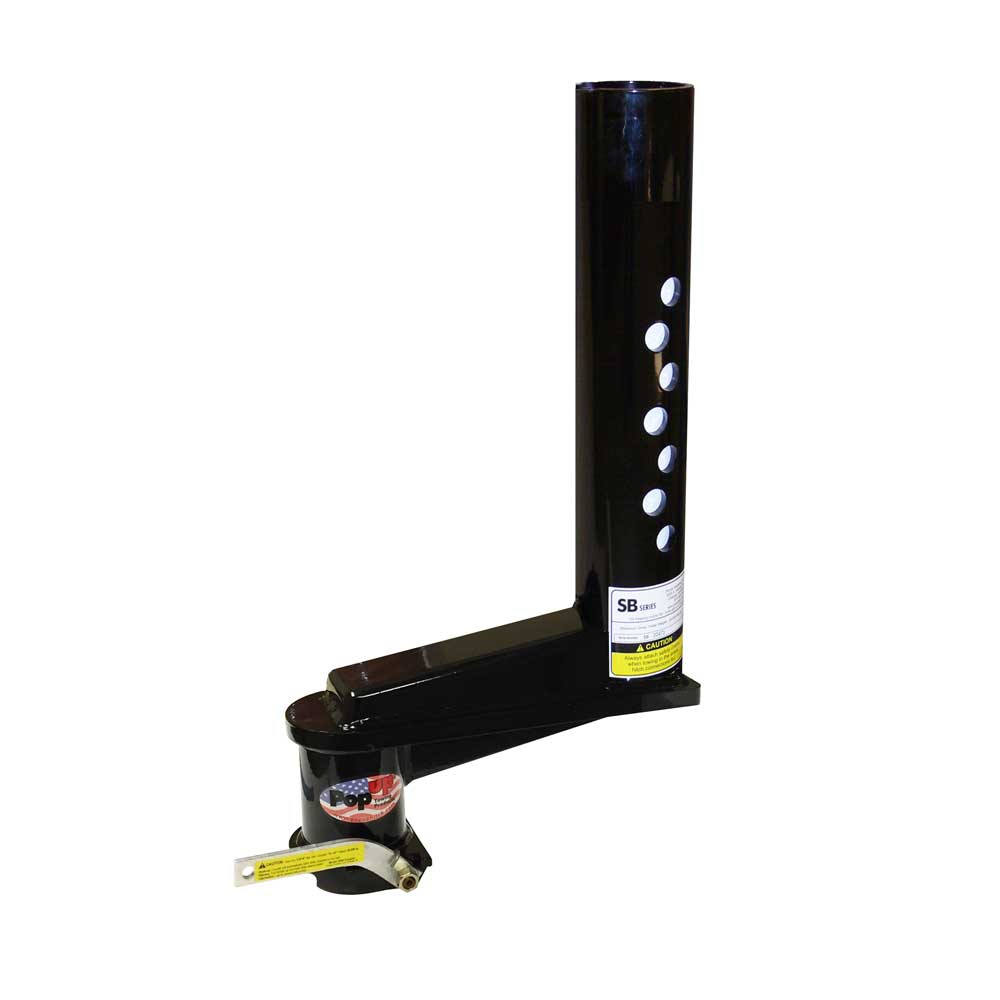

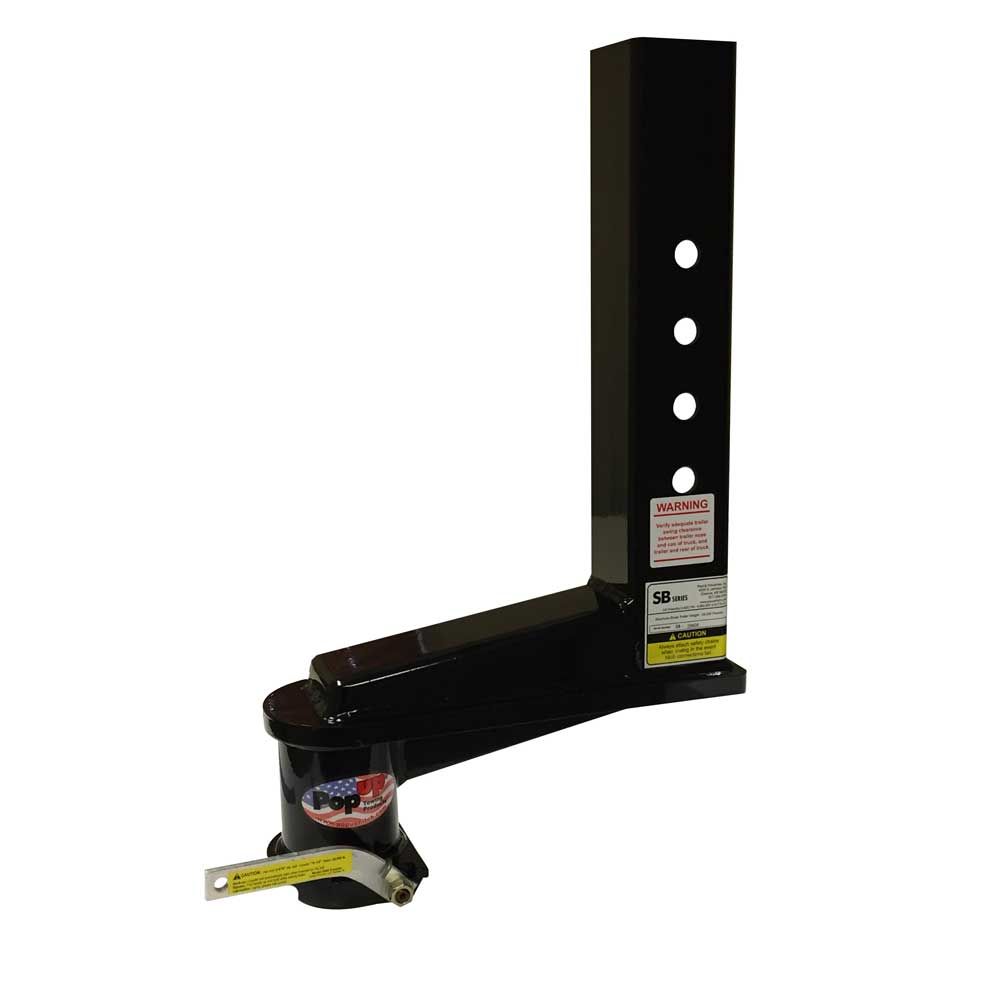

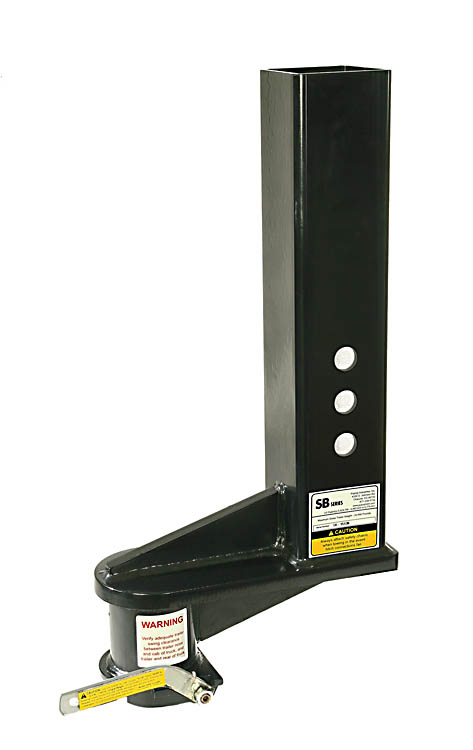

SB couplers are available in 6”, 9”, 12” and 16” off-set with 4” Round, 4-1/2 inch square and 4 inch square trailer stems. SBXL models with longer stems below the off-set are available for trucks with flat-beds.



SB couplers cause less than 100 pounds less tongue weight on your tow vehicle, which will not change your towing experience.



SB gooseneck trailer couplers are all for the standard 2-5/16 gooseneck ball.



SB couplers give you an additional clearance between your tow vehicle cab and the trailer nose, and between the tow vehicle tailgate and the trailer bulkhead. This gives you more clearance for additional trailer swing radius and more room for trailer hook-up.

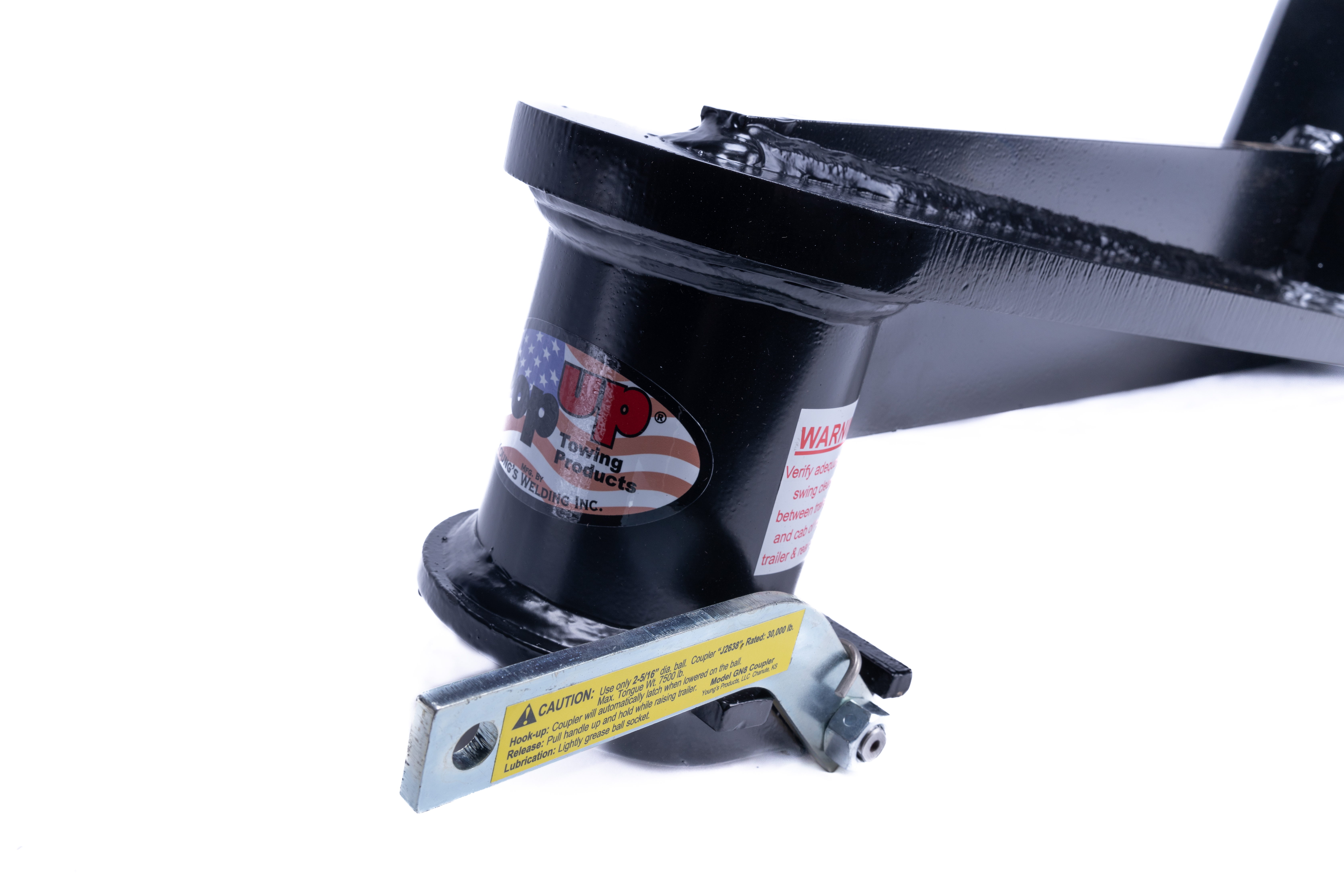

To make your towing experience better yet, all the extended gooseneck trailer couplers are fitted with premium “self-latching gooseneck trailer couplers” for the standard 2-5/16 gooseneck ball. These couplers latch when the trailer is lowered onto the ball. To uncouple, you simply pull a release cable located near the trailer jack handle. The couplers have a molded hitching guide for easy coupling. The couplers are precision cast of Chrome Vanadium Steel with a Stainless steel latching pin and a stainless steel spring. The couplers carry a V19 rating of 28,000 pounds and was tested to 42,000 pounds to gain this rating.



SB units are fabricated using extra heavy wall high strength tubing for maximum strength, not pipe and especially standard wall pipe as most manufacturers use. SB couplers are rated at 24,000 pounds gross trailer weight.

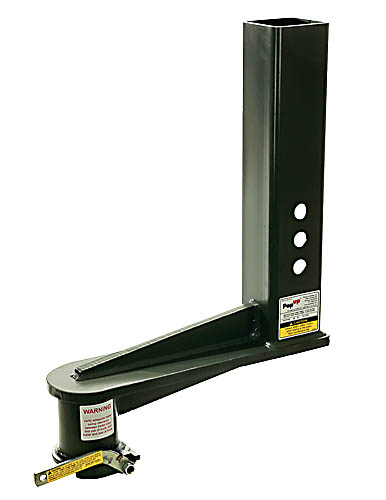

The 12 inch extension is the best length choice to fix most extension requirements.



Models:

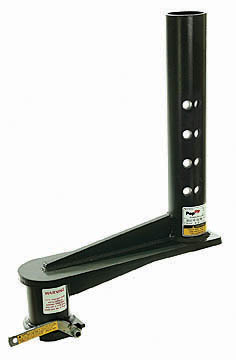

SB1-6 has a 6 inch extension with a 4 inch round trailer stem

SB2-6 has a 6 inch extension with a 4-1/2 inch square trailer stem

SB3-6 has a 6 inch extension with a 4 inch square trailer stem

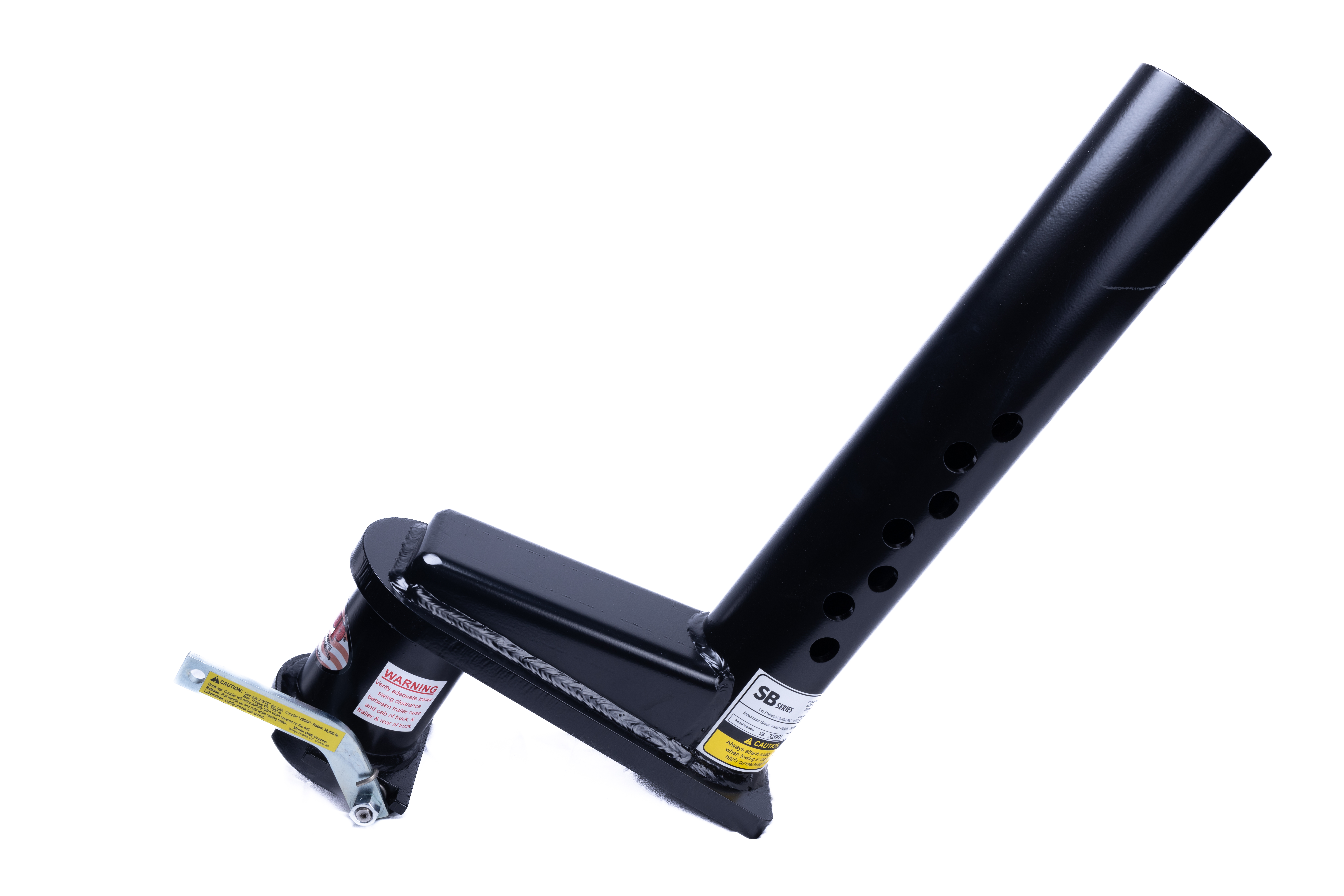

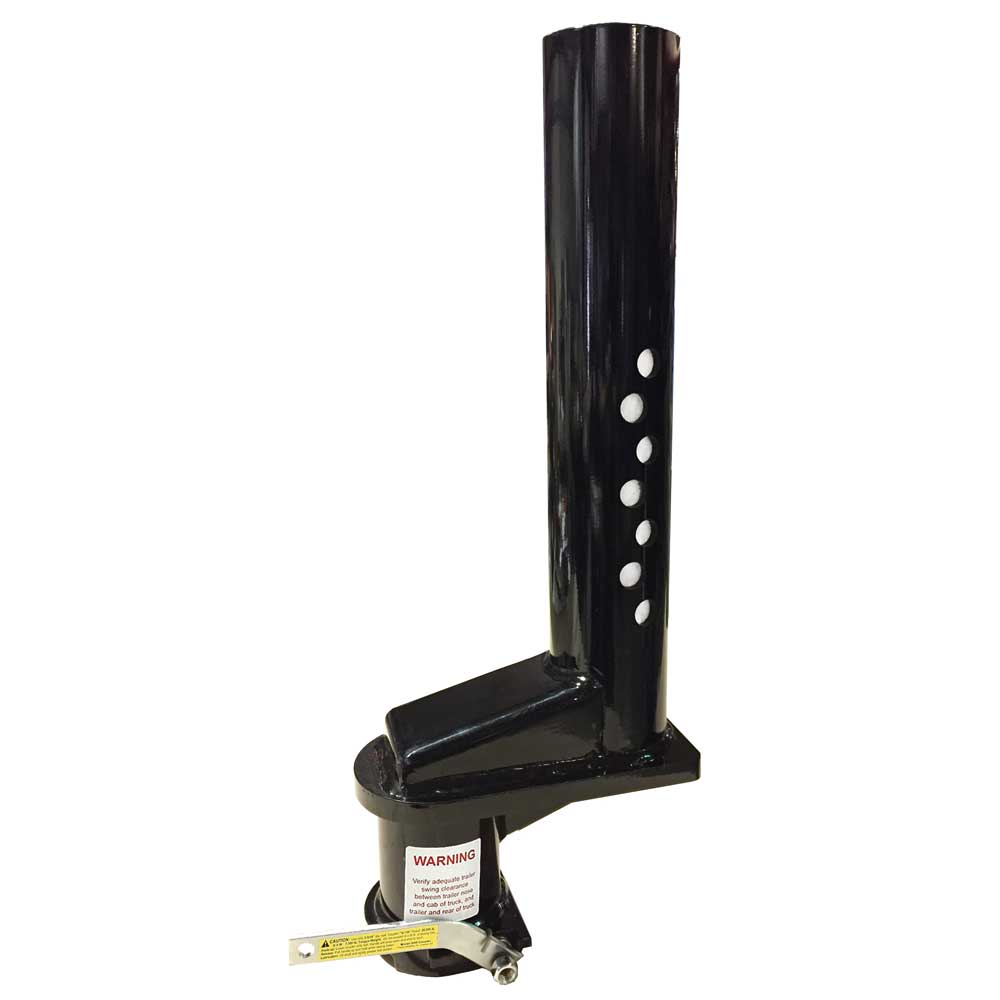

SB1 has a 9 inch extension with a 4 inch round trailer stem

SB2 has a 9 inch extension with a 4-1/2 inch square trailer stem

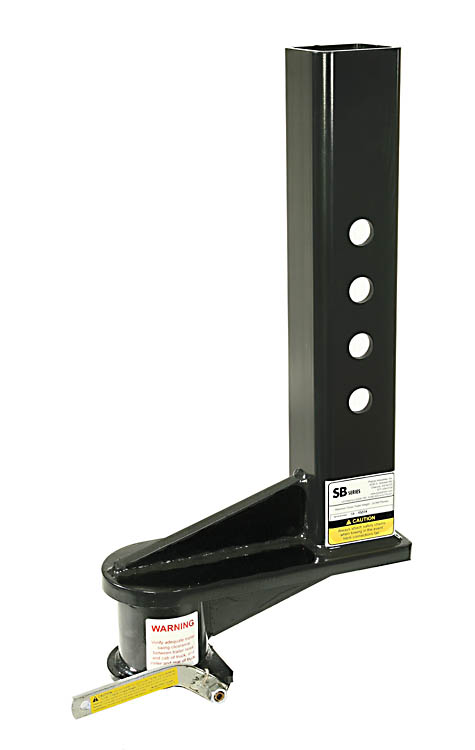

SB3 has a 9 inch extension with a 4 inch square trailer stem

SB112 has a 12 inch extension with a 4 inch round trailer stem

SB212 has a 12 inch extension with a 4-1/2 inch square trailer stem

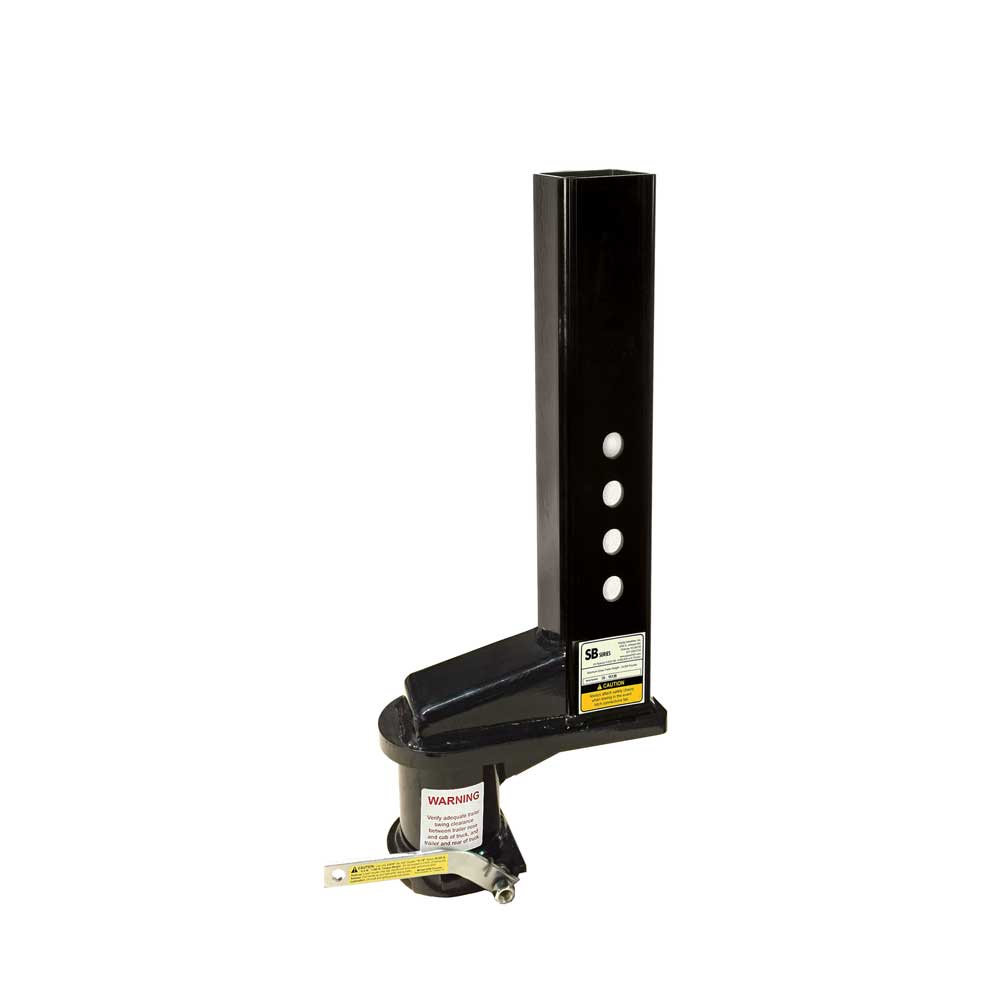

SB312 has a 12 inch extension with a 4 inch square trailer stem

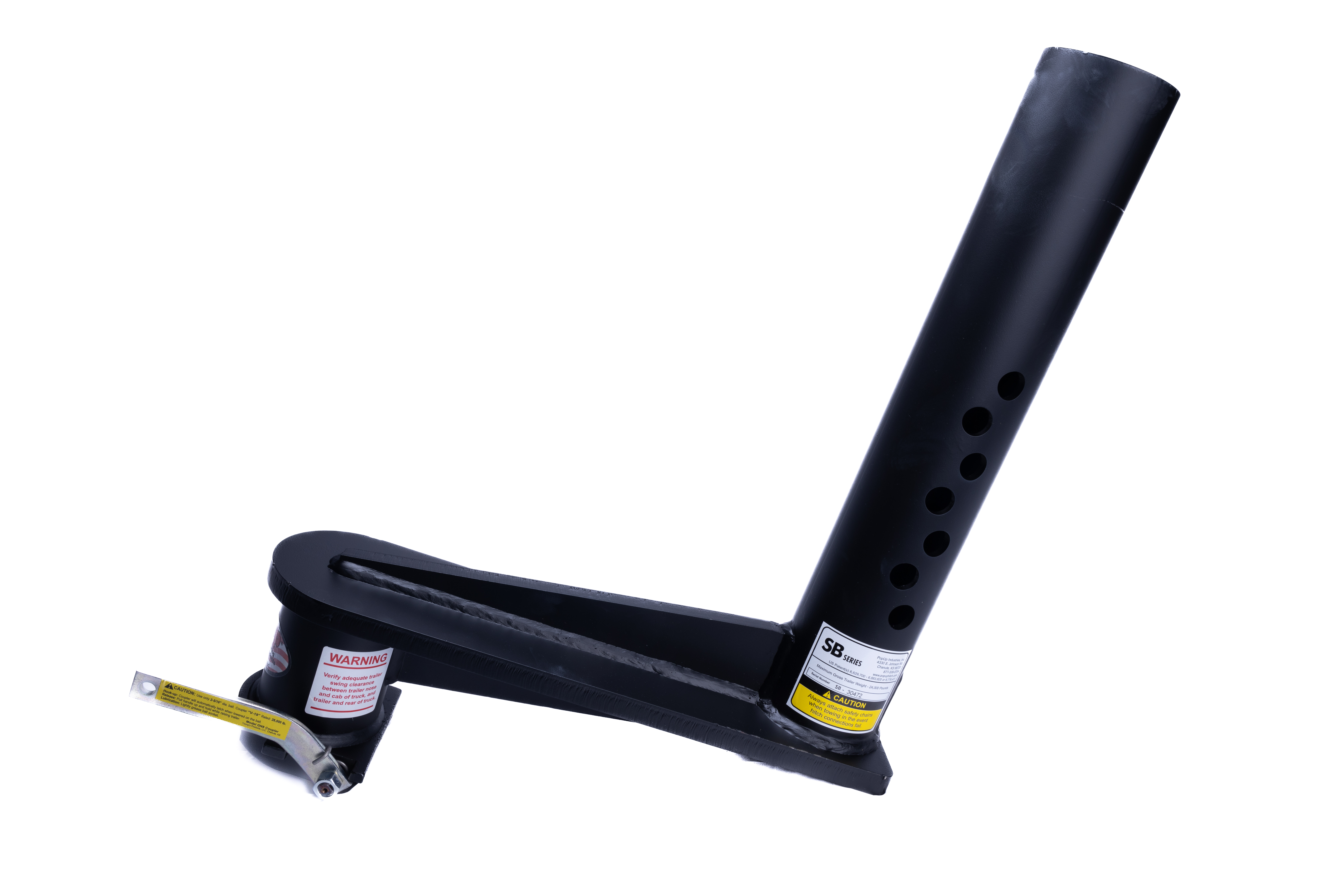

SB116 has a 16 inch extension with a 4 inch round trailer stem

SB216 has a 16 inch extension with a 4-1/2 inch square trailer stem

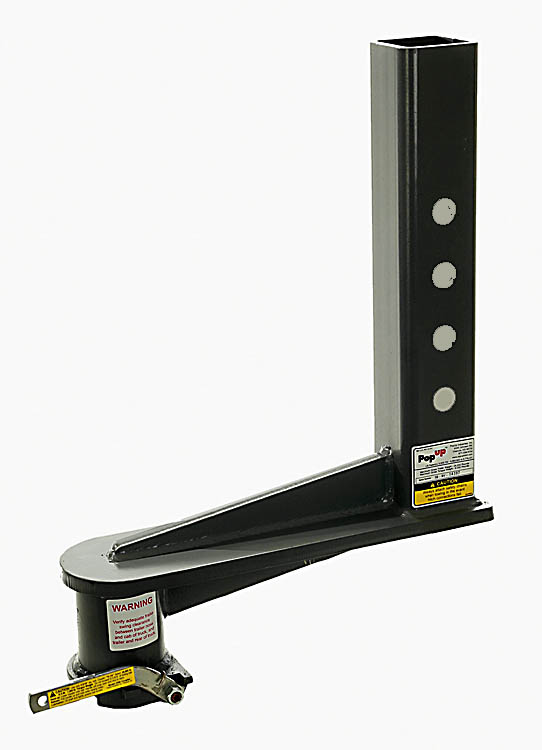

SB316 has a 16 inch extension with a 4 inch square trailer stem

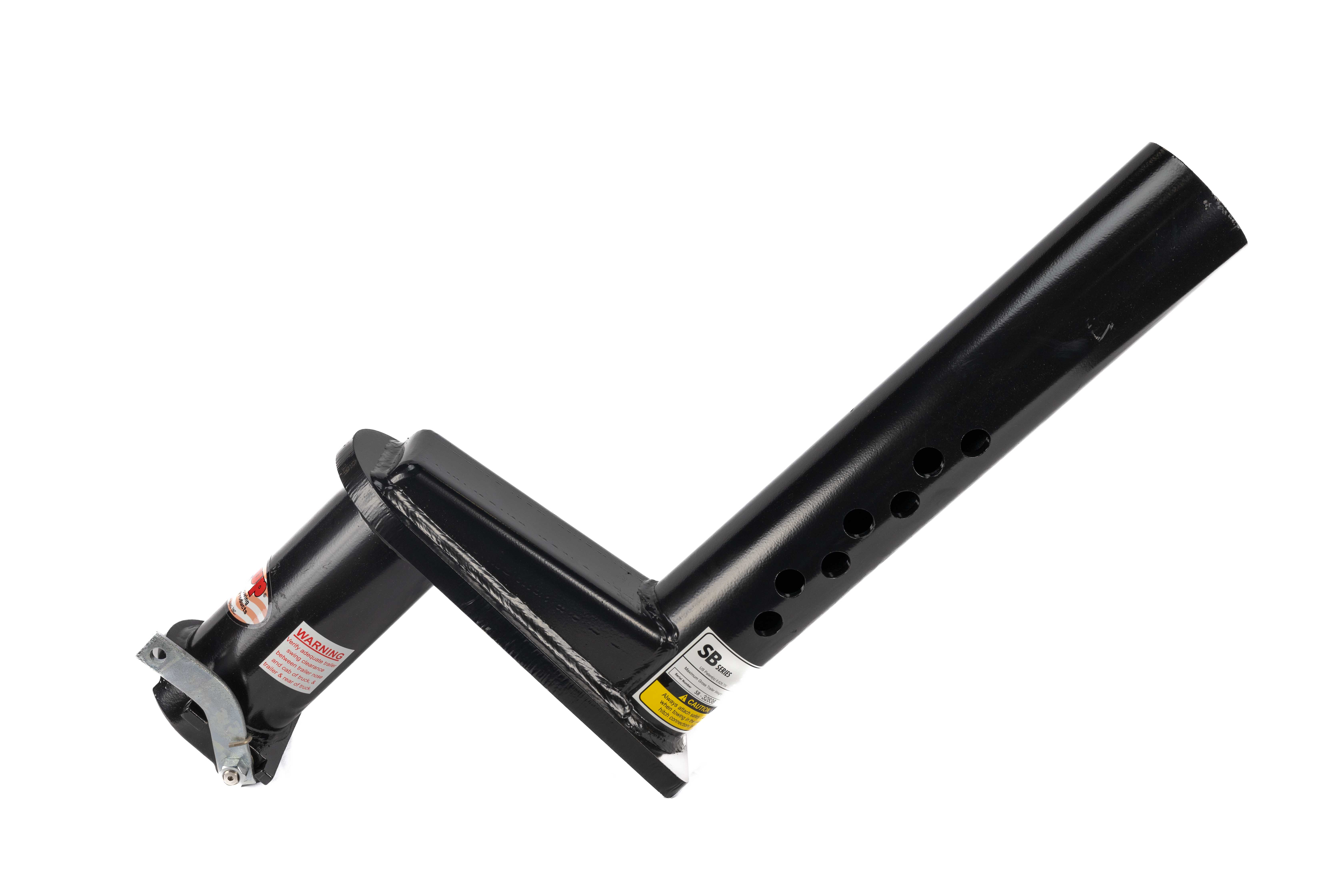

SB1XL flatbed truck has a 9 inch extension with a 4 inch round trailer stem

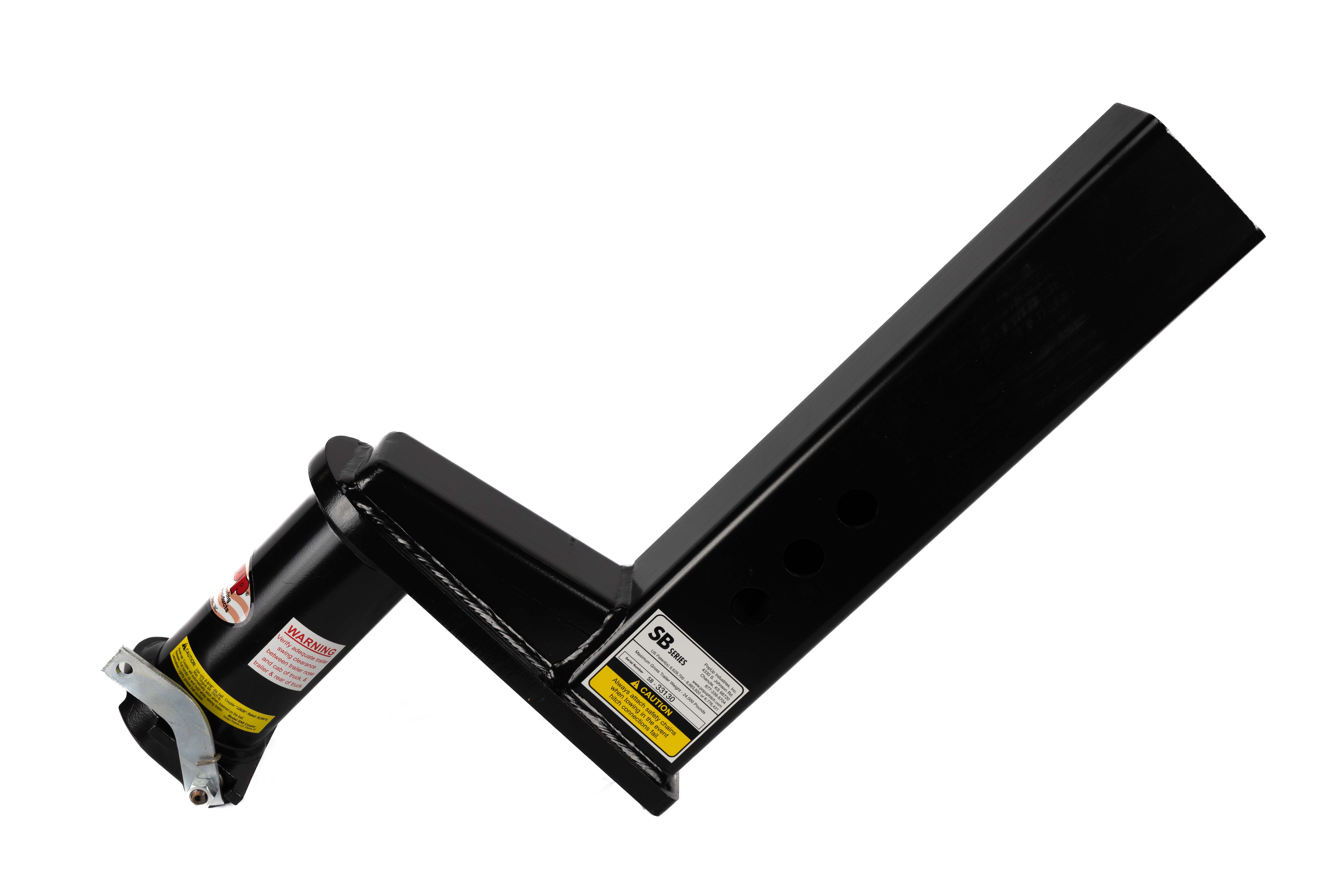

SB2XL flatbed truck has a 9 inch extension with a 4-1/2 inch square trailer stem

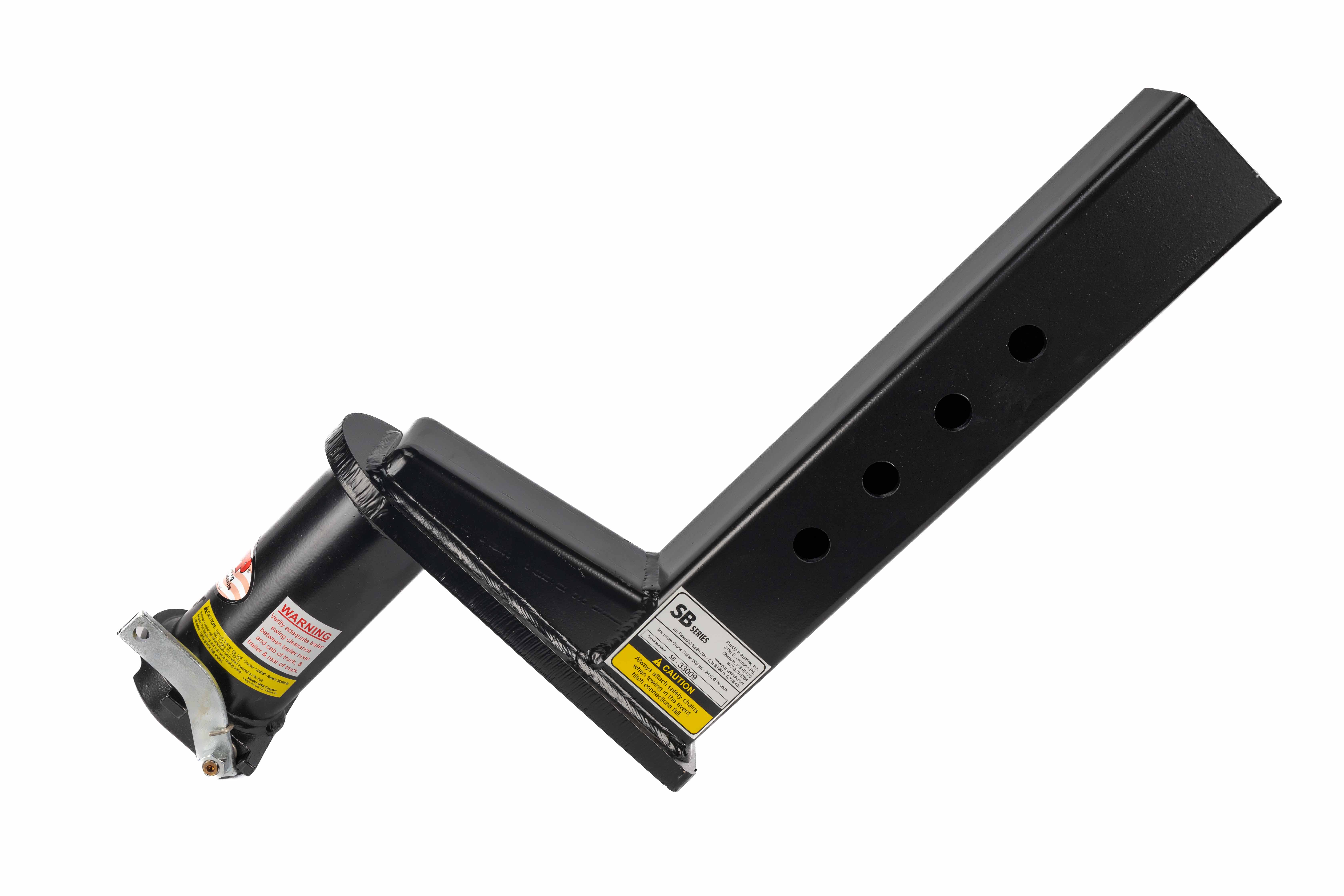

SB3XL flatbed truck has a 9 inch extension with a 4 inch square trailer stem
